5-Axis CNC Machining Services: Complex Geometry, One Setup
5-axis CNC machining moves the cutting tool or table along five simultaneous axes, letting a single setup shape complex, compound-angle geometries that would otherwise need multiple fixtures and risky repositioning. For aerospace, medical, and energy components where accuracy and lead time are critical, 5-axis is the gold standard. This guide explains how it works, when it justifies the investment, the materials it handles, and how to spec your job.
How 5-Axis CNC Machining Works

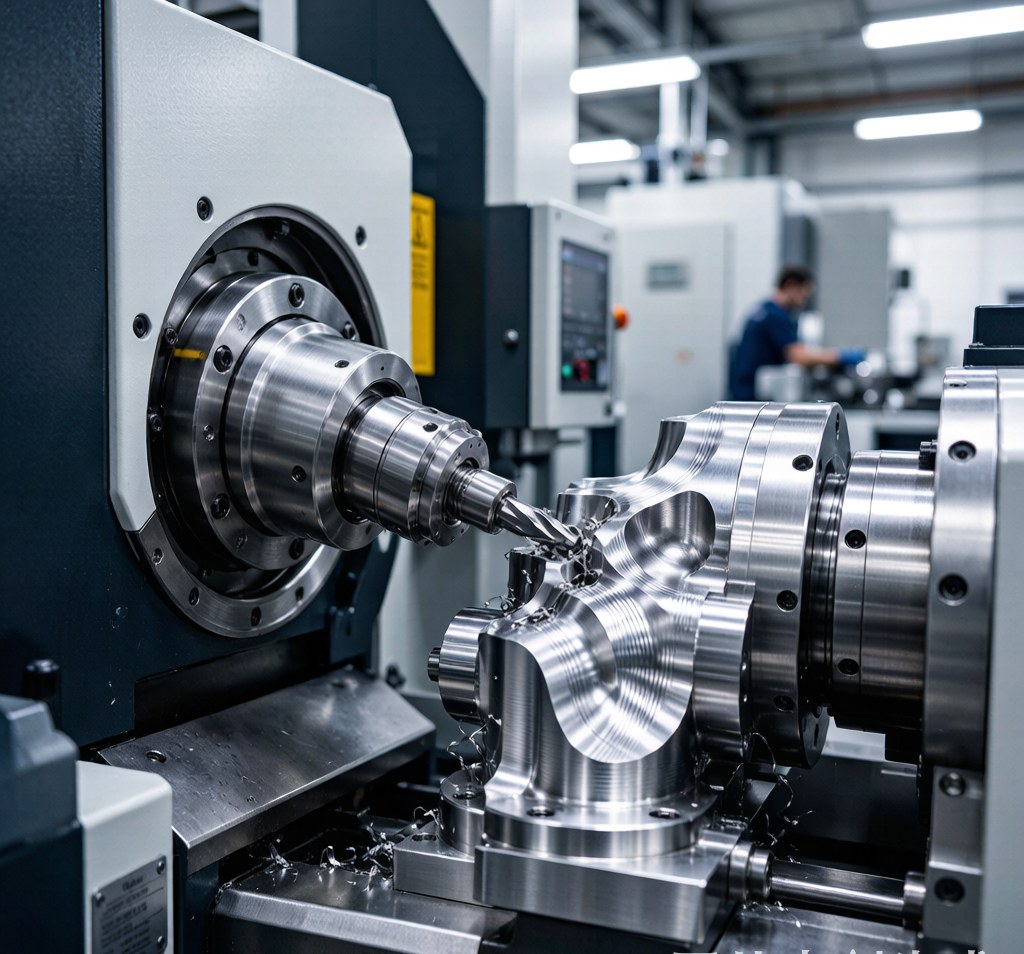

A 5-axis center combines the three linear axes with two rotational axes (typically A and B or B and C). The machine can tilt and rotate the part—or the spindle—so the tool meets the surface at the optimal angle throughout the cut. This means deep cavities, impellers, and turbine blades are machined in one clamping. Compared with stepping up from 3-axis through 4-axis, 5-axis collapses multiple setups into one and preserves geometric relationships.
5-Axis vs. Lower-Axis Machining
Five-axis shines where compound angles, undercuts, or very long tools would otherwise compromise accuracy or surface finish. It uses shorter, stiffer tools at better angles, improving finish and reducing cycle time. The trade-off is higher machine and programming cost—so we recommend it when geometry or tolerance demands it, not by default.
Materials We Machine
- Titanium and Inconel — aerospace and energy staples, machined efficiently at angle.
- Aluminum — lightweight structural and housings with complex forms.
- Stainless and hardened steels — for medical and tooling parts.
- Magnesium — where weight savings are critical.
- Engineering plastics and composites — with tuned parameters to avoid delamination.
Industries That Rely on 5-Axis Machining
Aerospace (airframe and engine components), medical (implants and surgical tools), energy (turbine and valve parts), and high-end automotive all depend on 5-axis capability for parts that simply cannot be made another way at acceptable cost and quality.
How to Spec Your 5-Axis Job
- Provide the full 3D model plus critical tolerances and datum structure.
- Flag compound-angle or undercut features so we confirm 5-axis is required.
- Identify tight-tolerance surfaces that must be cut in a single setup.
- Choose material and any special finish (e.g., passivation, anodize).
- Share volume and certification needs (material certs, inspection reports).
FAQ
When is 5-axis worth the cost?
When parts have compound angles, deep cavities, or tolerances that multiple setups would degrade. Single-setup accuracy often saves more than the premium costs.
What is the typical tolerance?
We hold ±0.01 mm on critical features, with full CMM verification available.
Can you machine exotic alloys?
Yes. Titanium, Inconel, and Hastelloy are routine on our 5-axis centers.
Why Choose Huaxiao for 5-Axis CNC Machining
Our 5-axis CNC machining service turns complex geometries into inspection-ready parts in a single setup, with DFM input and rigorous verification. From prototypes to flight-critical production, we deliver. Upload your model for a quote built around the right process.
