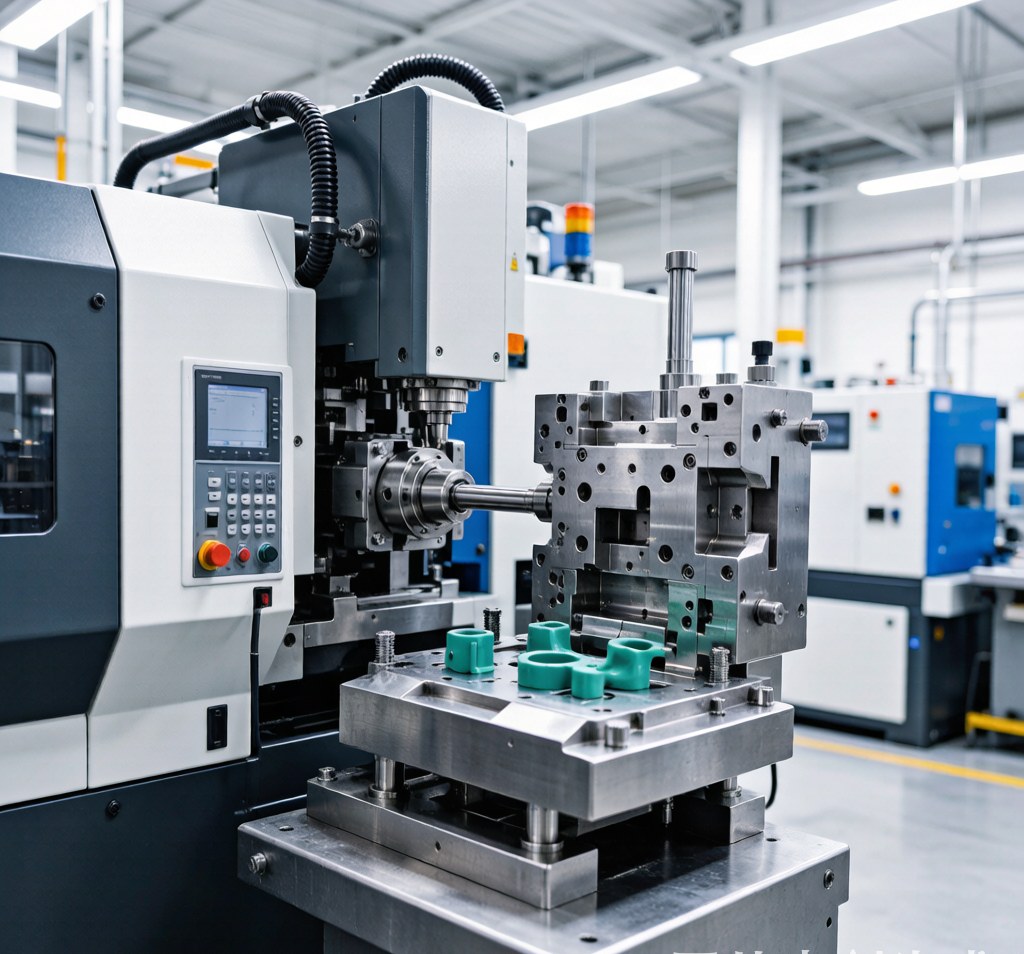

MIM Injection Molding
MIM injection molding shapes the feedstock into complex green parts in one shot, including internal features. Huaxiao delivers mim injection molding as part of our ISO 9001:2015 certified Metal Injection Molding (MIM) capabilities — from rapid prototyping to high-volume production, with full dimensional inspection and material certification on every order.
What Is MIM Injection Molding?
MIM Injection Molding is a specialized capability within our Metal Injection Molding (MIM) service. MIM injection molding shapes the feedstock into complex green parts in one shot, including internal features. It is chosen when parts demand the specific combination of geometry, tolerance, material and volume that this process delivers best. Our engineers select and fine-tune the exact parameters for your application to balance performance, lead time and cost.
Our MIM Injection Molding Capabilities
Backed by 15+ years of precision manufacturing experience and a vertically integrated workshop:
Technical Specifications
| Parameter | Specification |
|---|---|
| Process steps | Feedstock Mixing – Injection – Debinding – Sintering |
| Part weight | 0.02g – 300g |
| Max dimensions | 100 × 100 × 100 mm |
| Tolerance | ±0.3% standard, ±0.1% precision |
| Density | 95 – 99% theoretical |
| Surface finish | Ra 0.8 – 1.6µm as-sintered |
| Materials | 316L, 17-4PH, 420, 440C, Titanium, Kovar, Invar |
| Certification | ISO 9001:2015, ISO 13485 (Medical) |
Materials We Work With
We process a broad range of metals and alloys to match your mechanical, thermal and corrosion requirements:
- 316L
- 17-4PH
- 420
- 440C
- Fe-Ni
- Titanium Grade 2/5
- Kovar
- Invar
Industries & Applications
MIM Injection Molding is widely used across demanding industries. Typical applications include:
Why Choose Huaxiao for MIM Injection Molding
- 95-99% density with properties approaching wrought metals.
- ISO 13485 medical-grade capability for implant components.
- Complex small parts impossible or costly by machining.
Frequently Asked Questions
Send us your drawings, quantity and requirements. Our engineering team responds within 24 hours with a detailed quote.
