Reverse Engineering: Reliable Reverse Engineering from Huaxiao
Reverse Engineering recreates drawings and specs from a physical sample—so you can reproduce, improve, or source a part with no original documentation.
How Reverse Engineering Works

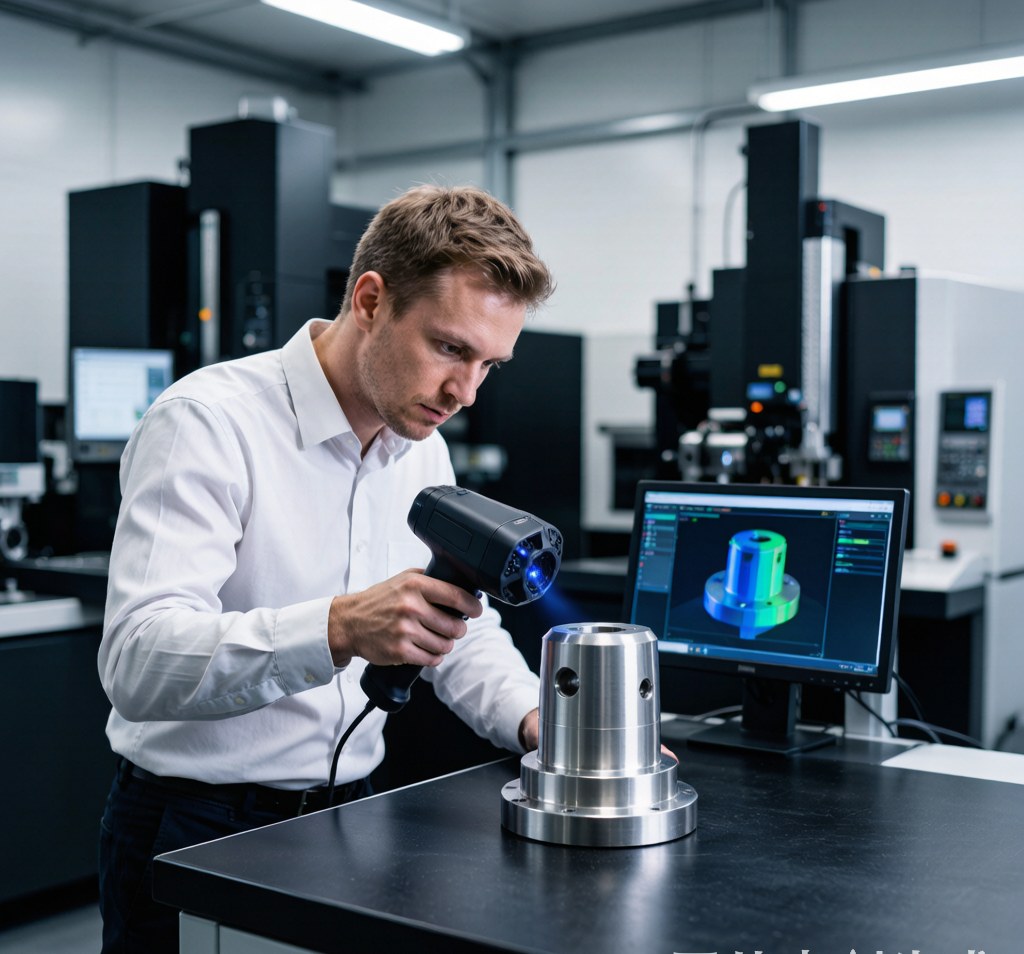

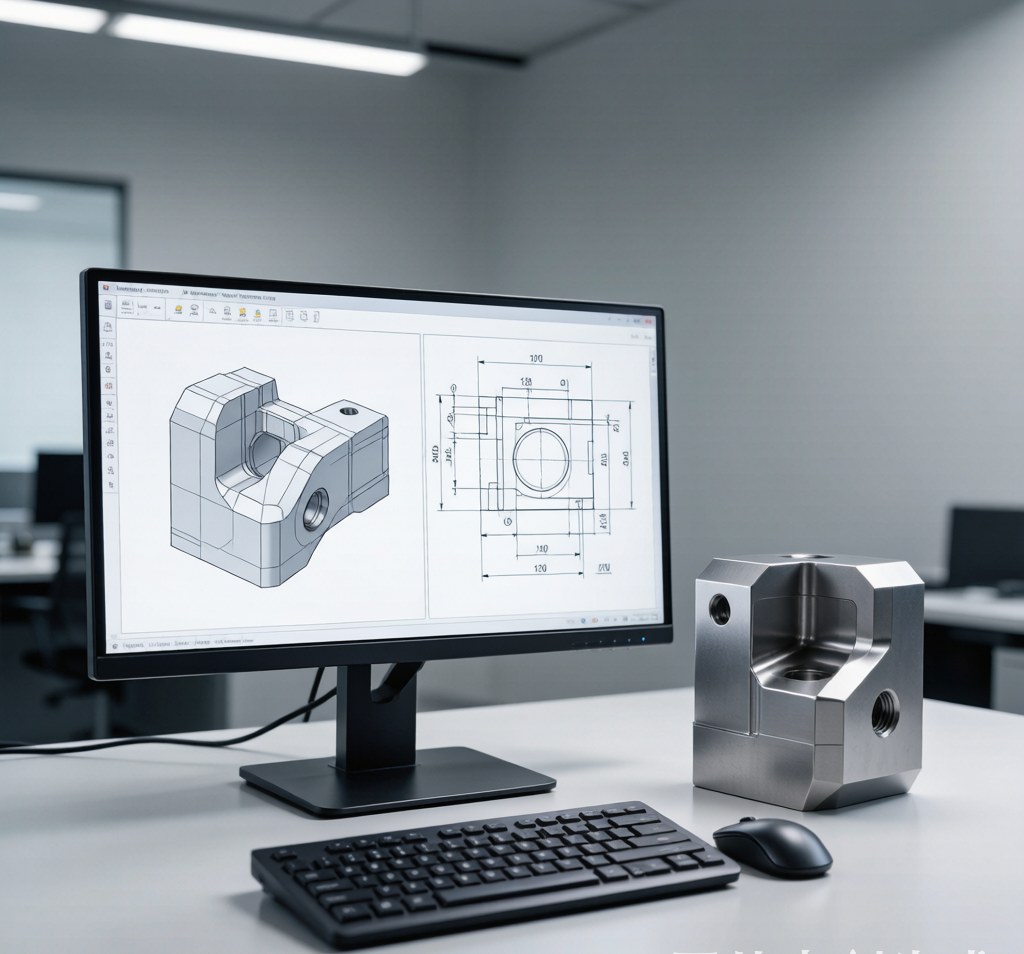

We scan or measure the part, rebuild the 3D model and tolerances, and validate it against the sample so you can manufacture with confidence.
Reverse vs. Redesign
Reverse recreates the existing part; redesign improves it. Start with reverse to capture intent.
Materials
- Scanned parts—point-cloud to CAD
- Measured parts—manual metrology
- Validated models—build-ready CAD
Industries
Maintenance, aftermarket, and improvement teams use reverse engineering.
How to Spec Your Reverse Engineering Job
- Provide the sample part.
- Define required accuracy.
- Note materials and function.
- Set deliverables (CAD, drawings).
- List validation needs.
FAQ
No drawing?
We create one from the sample.
Improve it?
Reverse first, then redesign.
Why Choose Huaxiao for Reverse Engineering
Our Reverse Engineering service delivers reliable, repeatable results with integrated finishing. Send your drawing for a quote covering Reverse Engineering through final inspection.
